Descriptions:

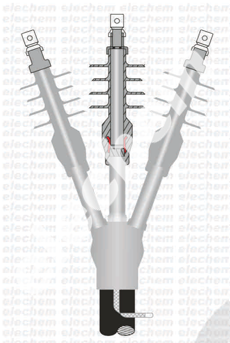

GCXO/I - 1236 - Series termination kits are cold shrinkable type, designed for 3 core extruded dielectric, shielded, armoured & unarmoured XLPE/EPR/PVC insulated cables upto 36 KV rated voltage (12KV, 15-24KV & 36KV usage). It is based on specially formulated, trackresistant, silicone rubber insulators with stress relief. These insulators are pre-stretched around a coiled plastic core. When the termination is slipped over a properly prepared cable and the core is pulled out, the termination immediately shrinks to fit the cable's dimensions. The result is a tight, durable, void free, constant-pressure seal for a variety of cable types and sizes. Our kits provide a dielectric constant of approximately 25, distributing the electric field well beyond the shield cut off. These are designed, manufactured and tested according to requirements of the local & internationally accepted standards.
Salient Features:
- Simple installation - no special tools required
- No torches or heat required
- Safe installation - replaces conventional & simple method
- Accommodates a wide range of cable sizes
- Built in Stress control mechanism
- Improved tough rubber formulation withstand rough backfilling
- Resistant to acids, alkalis, ozone, UV light, and fungus
- Minimized Chances of Jointer error
- Maintains constants radial pressure.
- No torches or heat required.
- Built in Stress Control mechanism
- Maintains Constants radial pressur.
